SPECIFICATIONS

Brand Name: BQCC

Hign-concerned Chemical: None

Origin: Mainland China

Item Size: 222x132MM

Model Name: 9070-J

Item Type: Car Monitors

Item Weight: 1030

Placement: In-Dash

Display Size: 7"

Resolution: 1024*600

Certification: CE

Material Type: ABS+Metal

Type: Android navigation machine

System: Android 13

Radio frequency: FM 87.5~108.0MHz

Radio IC: 6625

Amplifier IC: YD7388

Output power: 60Wx4

Working voltage: 12~14.4V

Wifi frequency: 2.4GHz

GPS signal: GPS+GLONASS+Beidou

Audio output: 2 channels (left channel + right channel)

Video output: 1 channel

Audio input: 2 channels (left channel + right channel)

Video input: 2-way

Reversing video input: 1-way

Audio format: MP3/WMA/WAV/APE/FLAC/AAC/OGG/RM

Video format: MPEG/AVI/RM/FLV/ASF/WMV/MP4/MKV/OGM/TS/DivX/RMVB/VOB

Image format: JPG/BMP/PNG/JPEG/GIF

Choice: yes

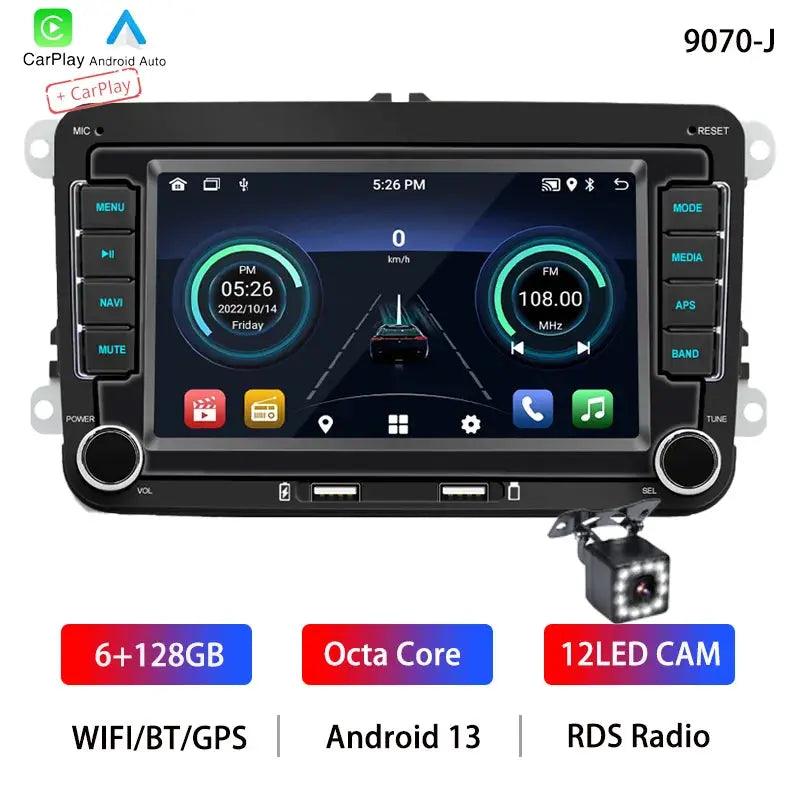

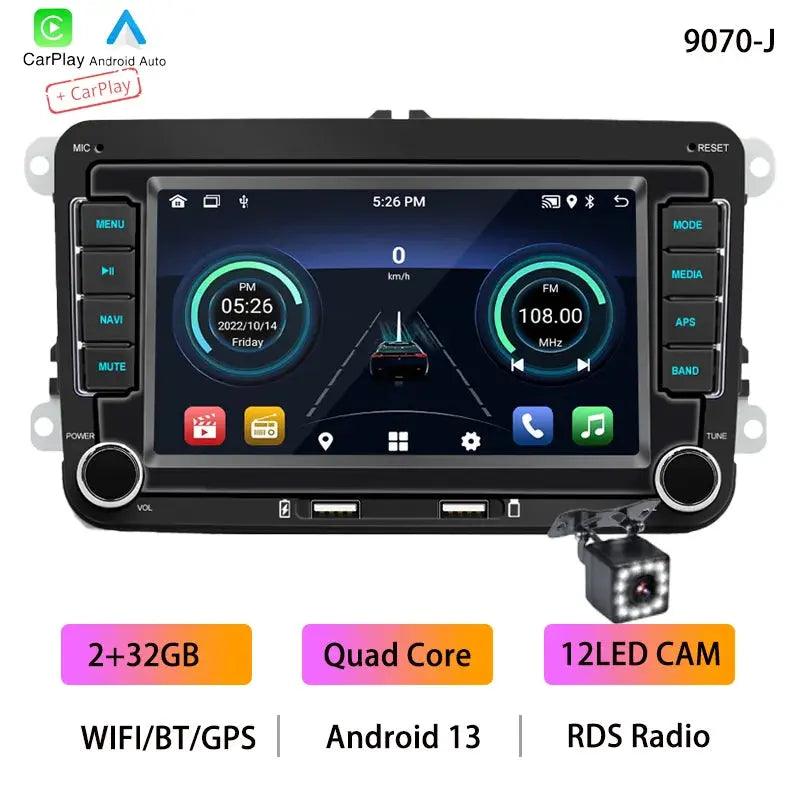

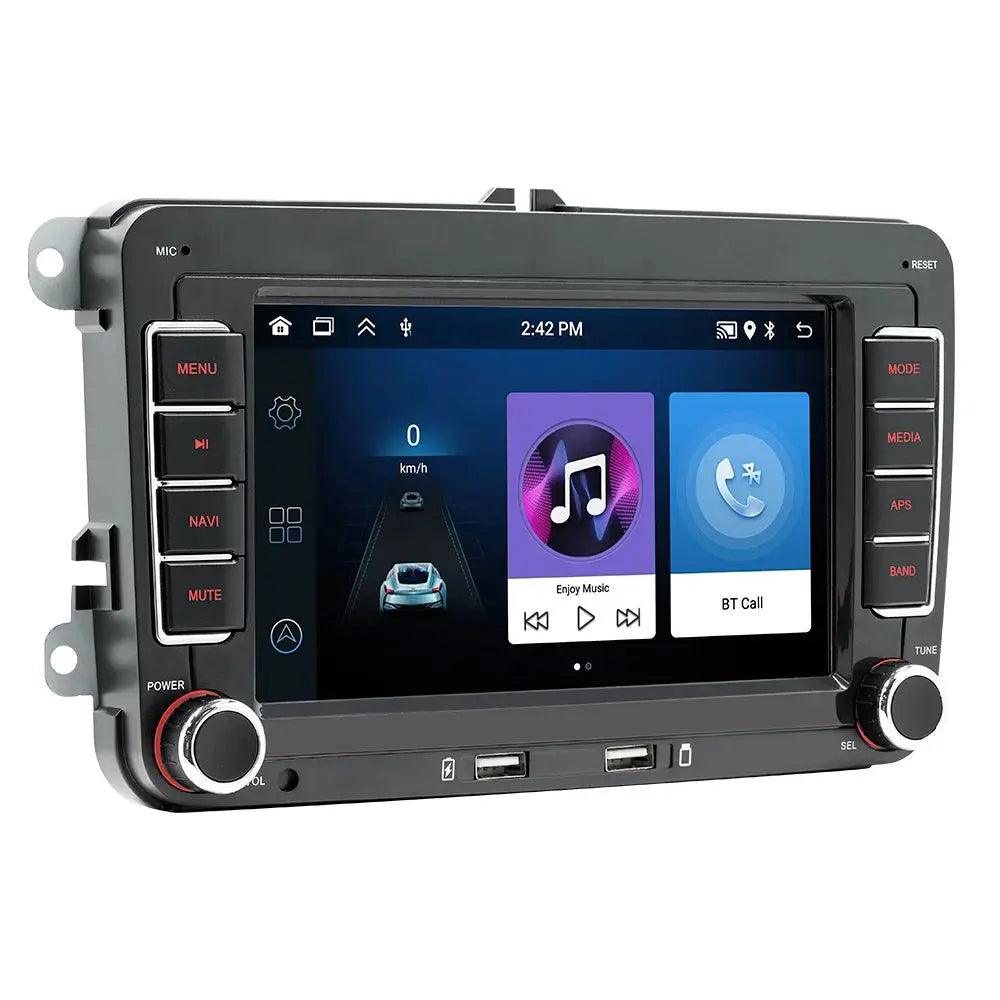

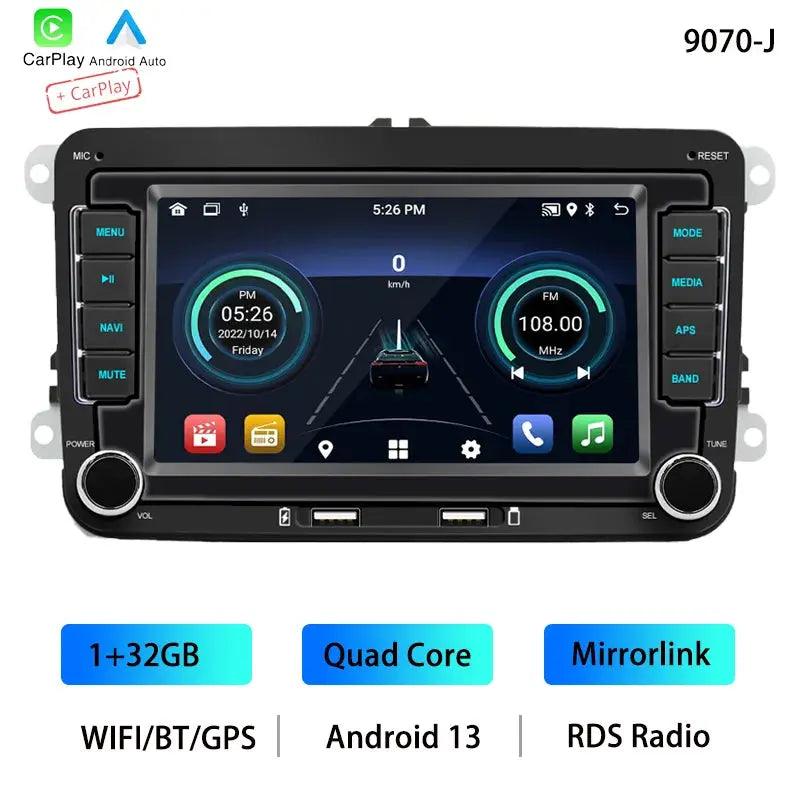

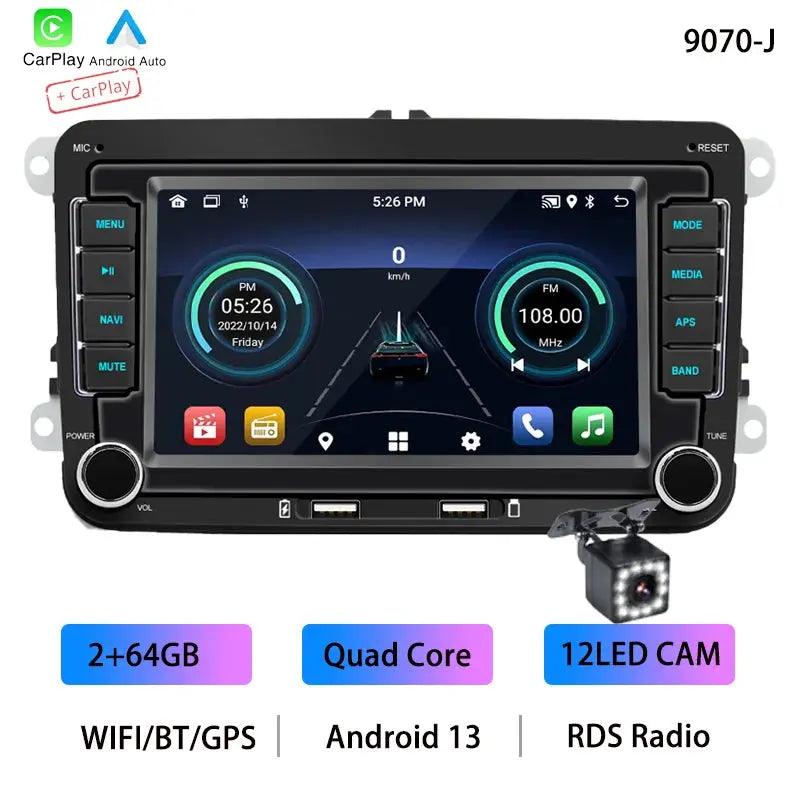

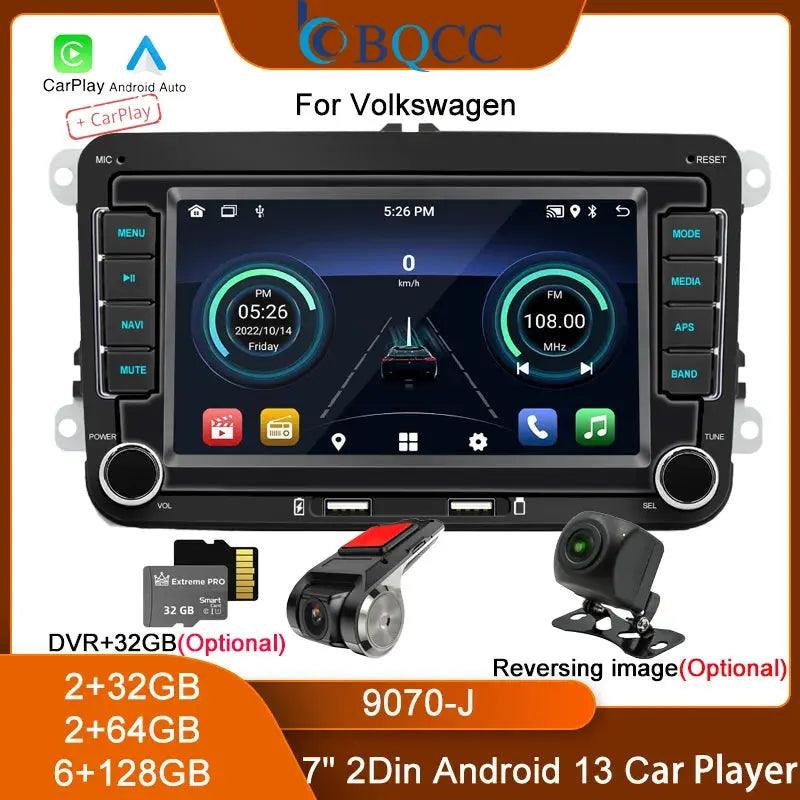

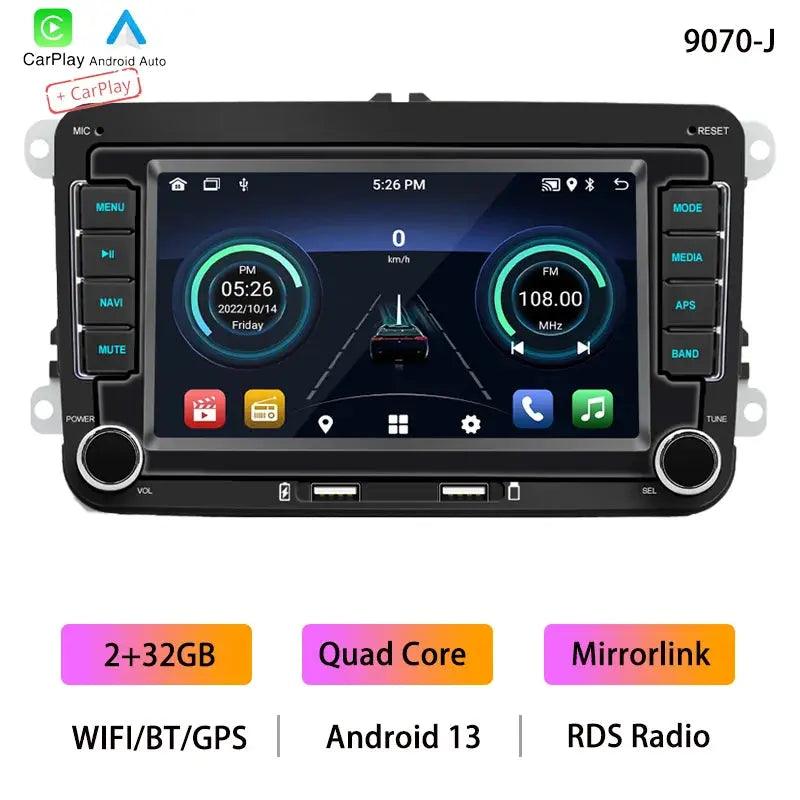

BQCC 7" 2Din For Volkswagen Car Stereo Android 13 Quad/Octa Core WIFI GPS BT Wireless Carplay Android Auto Navigation Autoradio

Tips:
Please check if the package and product are in good condition when signing. If not, please refuse to sign the package.
Please use the original power supply unit in the package when installing the product. If not, the product will not work.
When connecting the power supply:
1.please connect the yellow wire to the positive pole of the car battery. otherwise the product will be reset when the product is turned on every time, and using setting can't be saved.
2.please connect the red wire to the ACC positive pole instead of the car battery positive pole, otherwise the car will go out and the car player is still working, and the car battery will be exhausted.
It is clearer to tear off the protective film when using.

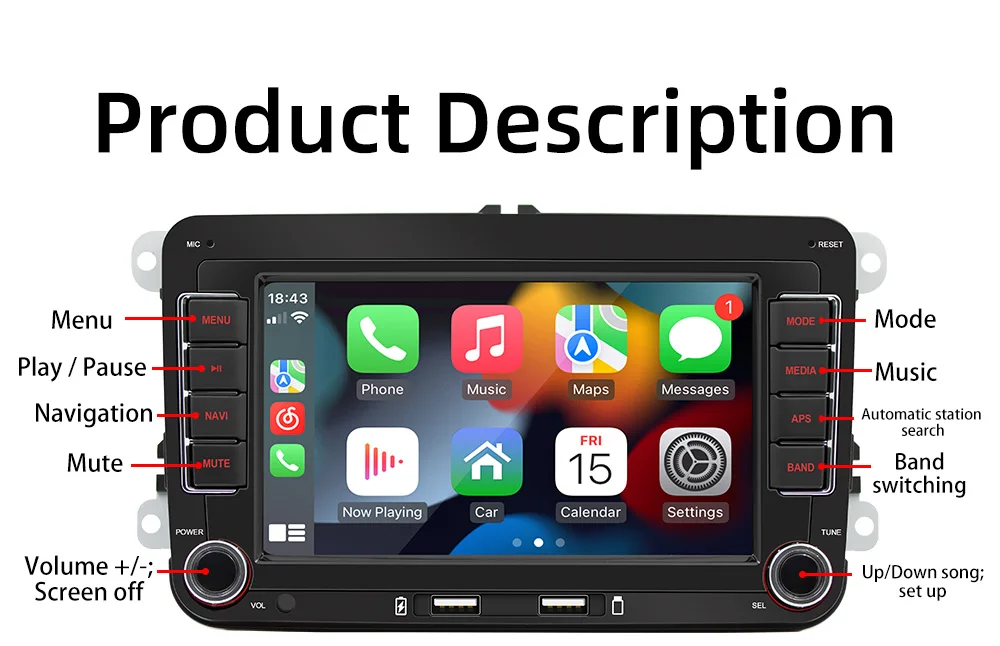

Features:
1. Radio (FM)

2. Read USB disk (audio/video/picture)

3. Audio input function

4. Bluetooth function

6. Rear view function (camera optional)

7. Video input and output function

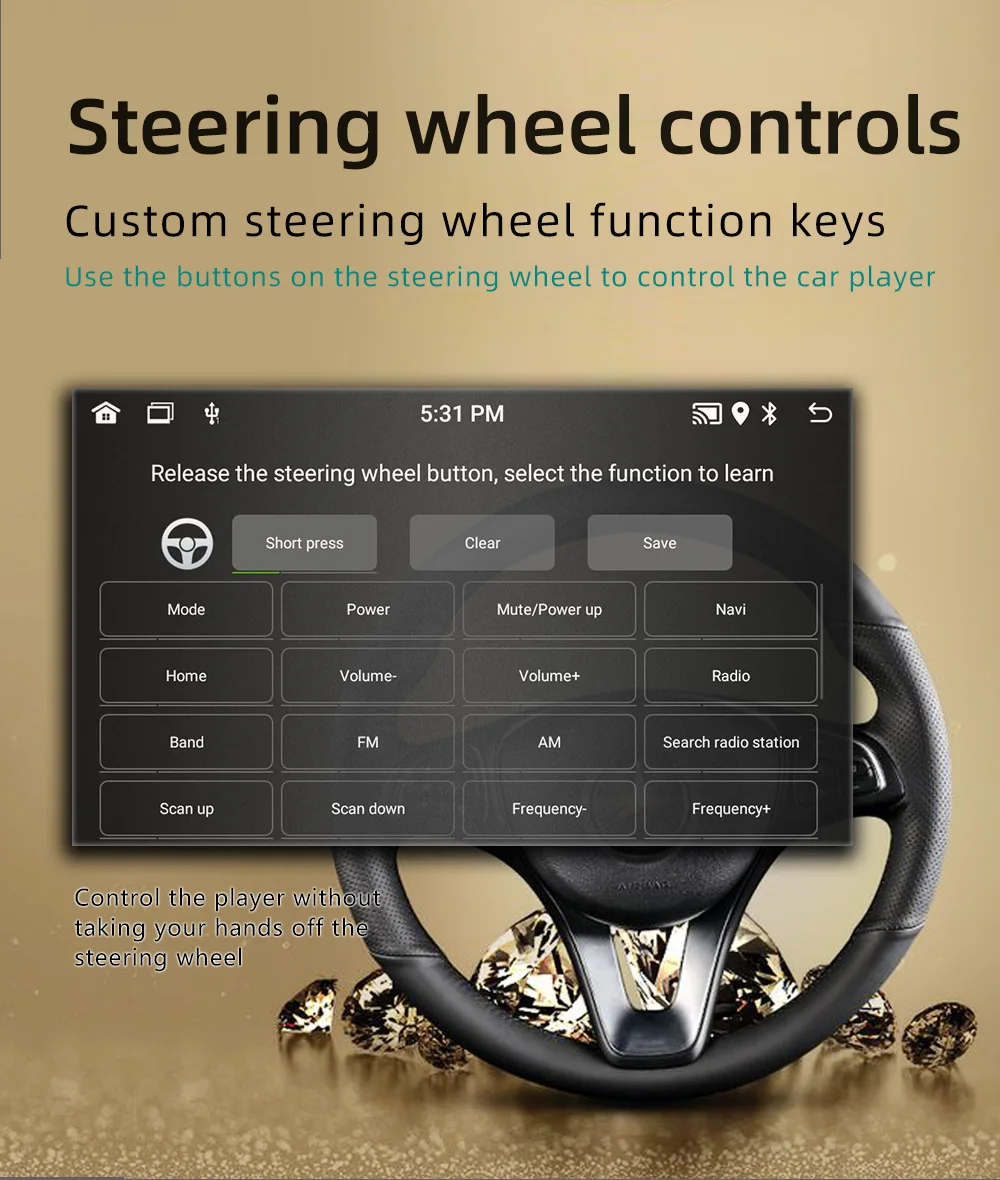

8. Original car steering wheel learning function

9. Android recorder can be installed

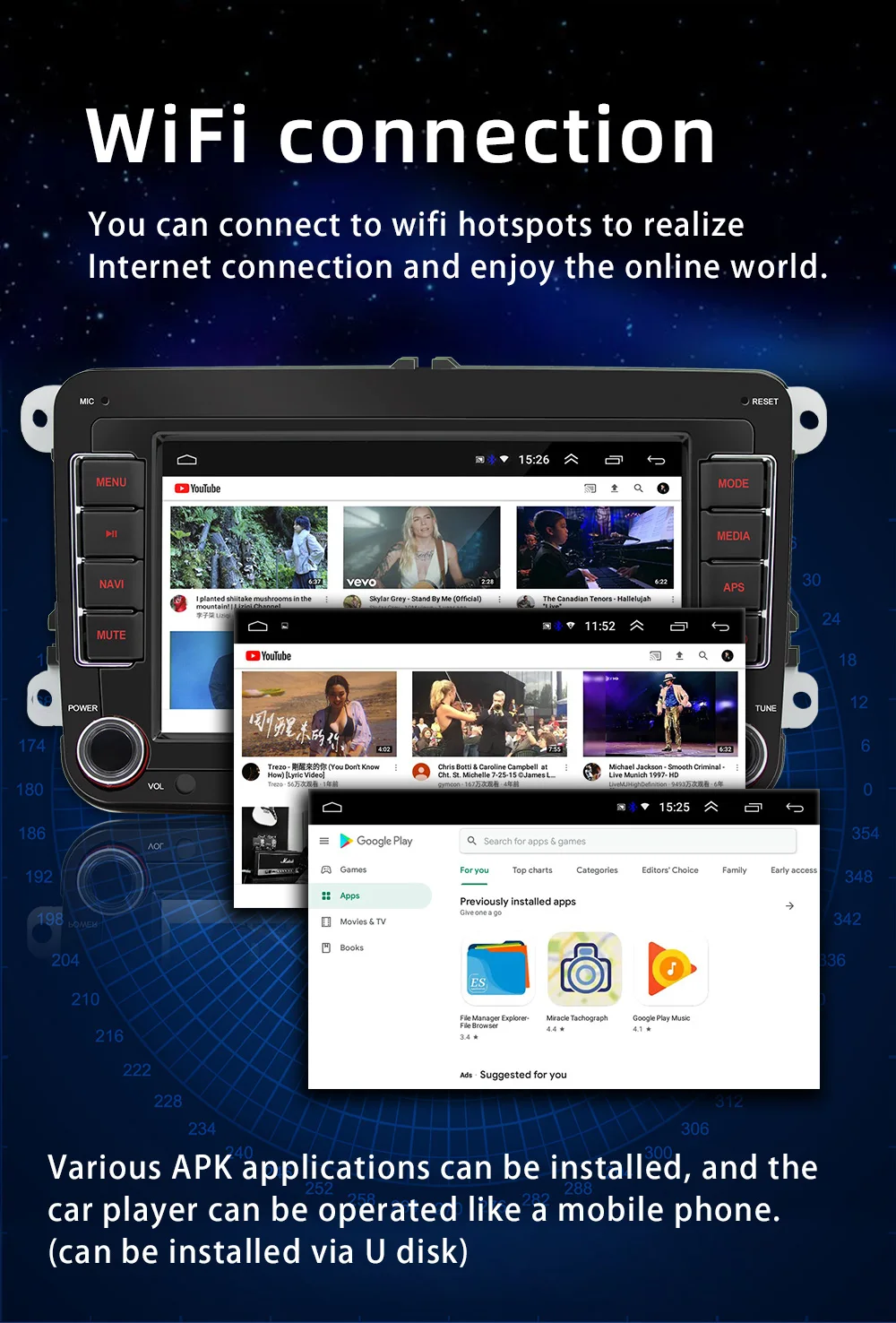

10. WIFI Internet access

11. GPS navigation

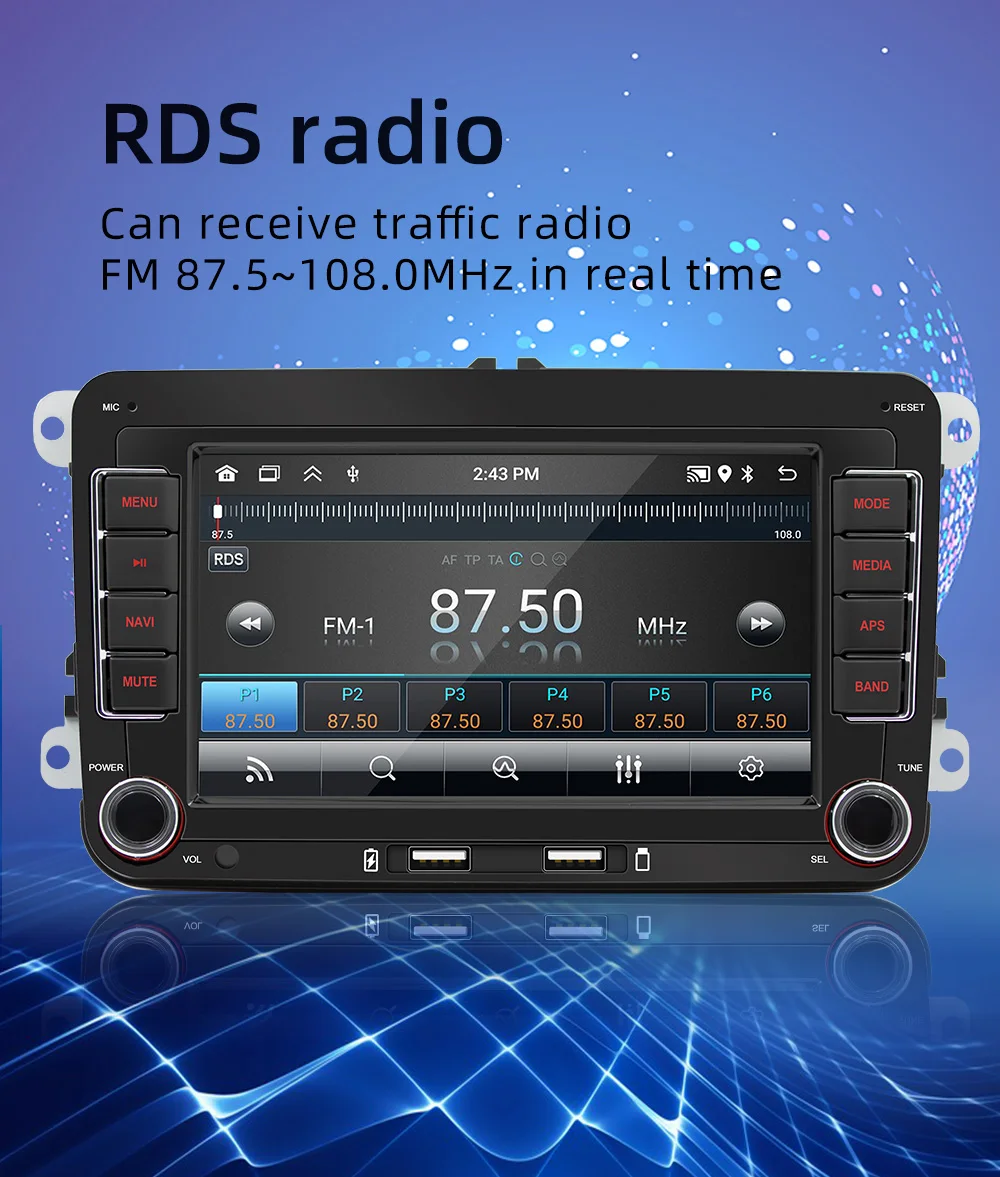

12. RDS function, real-time traffic radio

13. APP can be installed

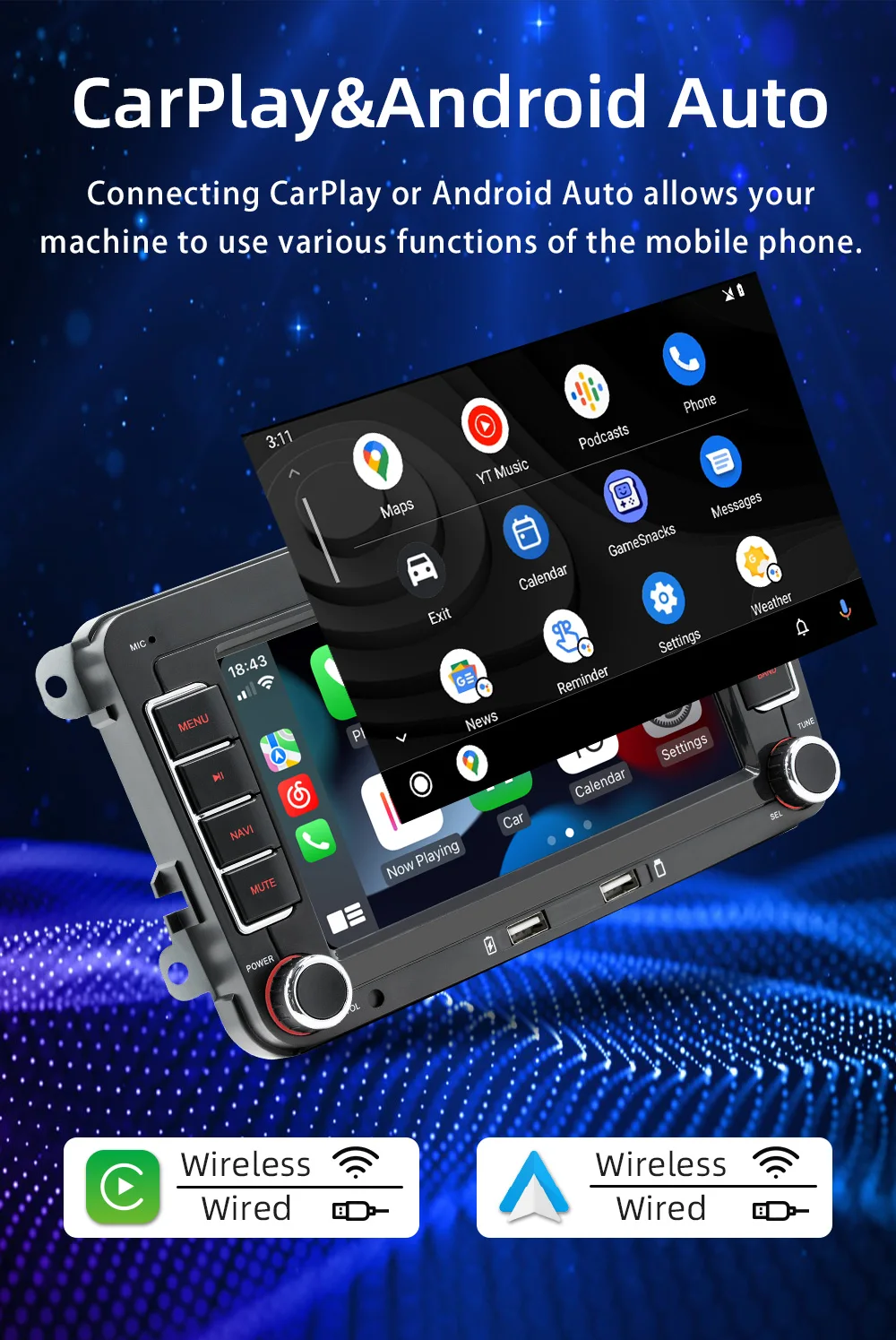

14. Wired and wireless android auto/Apple carplay

15. Recorder function

16. USB charging function

17. Red button light

Basic parameters

Model : 9070-J

Type : Android navigation machine

System : Android 12

Software solution : Jinganchi

Radio frequency : FM 87.5~108.0MHz (switchable Europe, Eastern Europe, North America, South America, Africa, Australia, Japan regional radio frequency)

Radio IC : 6625

Amplifier IC : YD7388

Output power : 60Wx4

Working voltage : 12~14.4V

Working temperature : -10~60℃

Bluetooth : version 5.1 version (default name: SWL-BT)

Wifi frequency : 2.4GHz

GPS signal : GPS+GLONASS+Beidou

Performance parameters

CPU : A7 1.1GHz x 4

Running memory : 1G (DDR3)

Storage memory : 32G

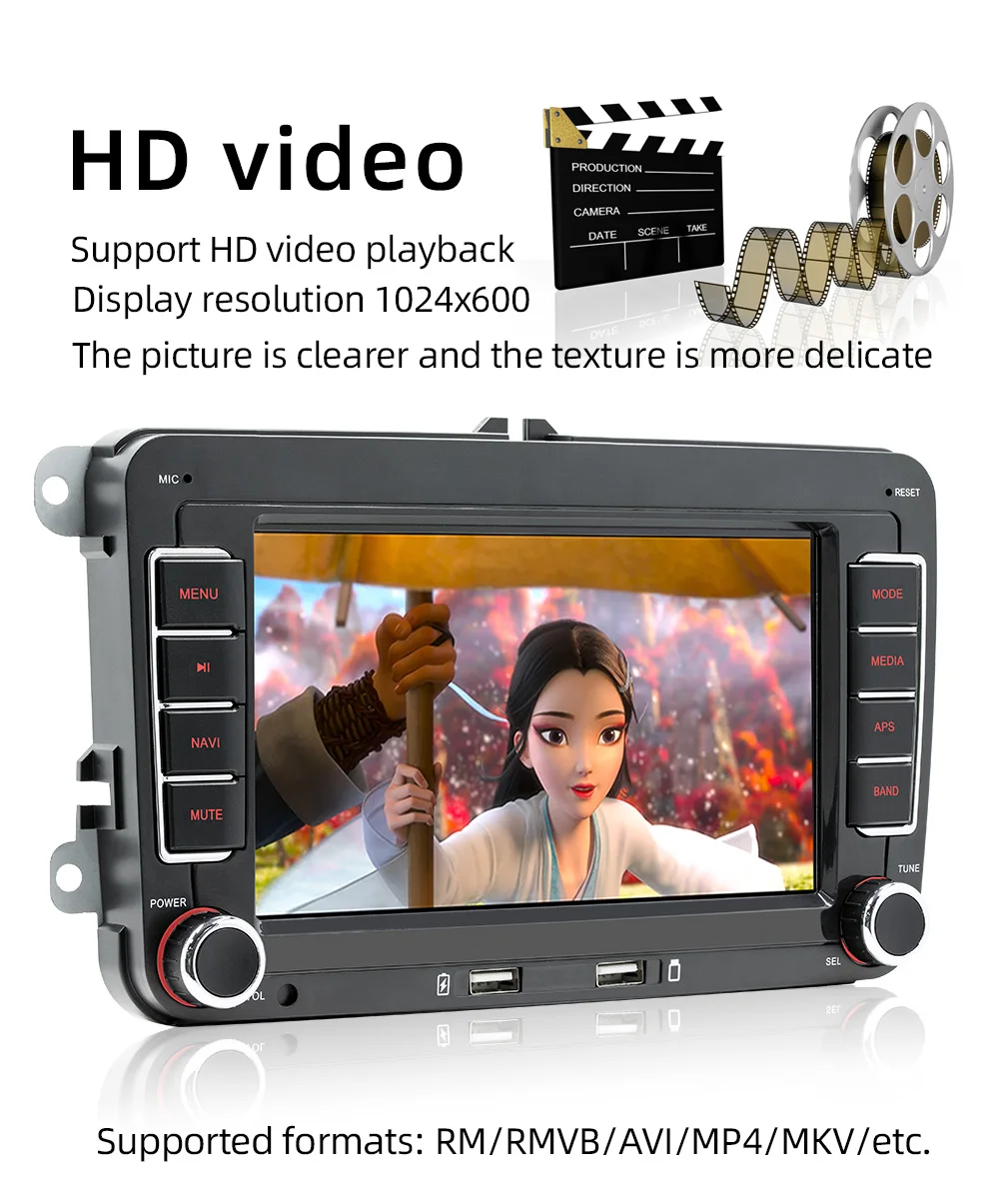

Display resolution : 1024x600

Screen size : 7 inches

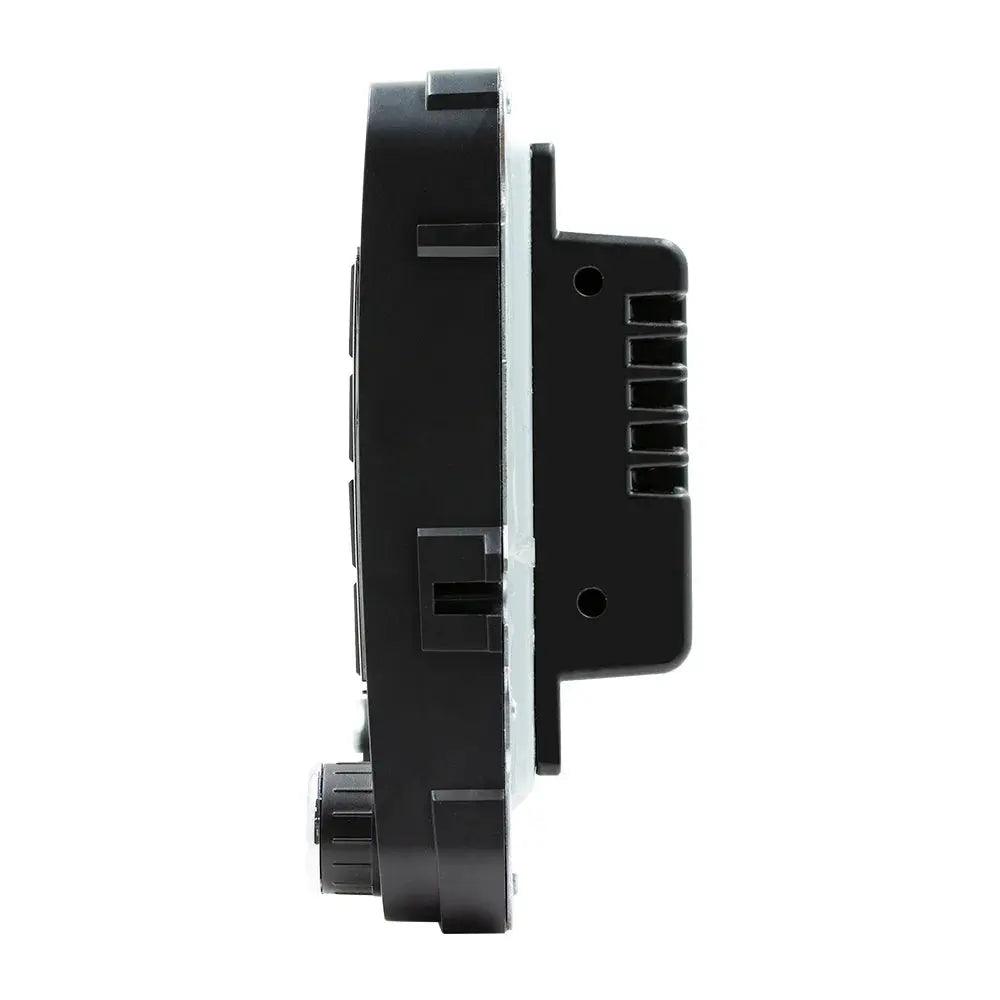

Dimension parameters

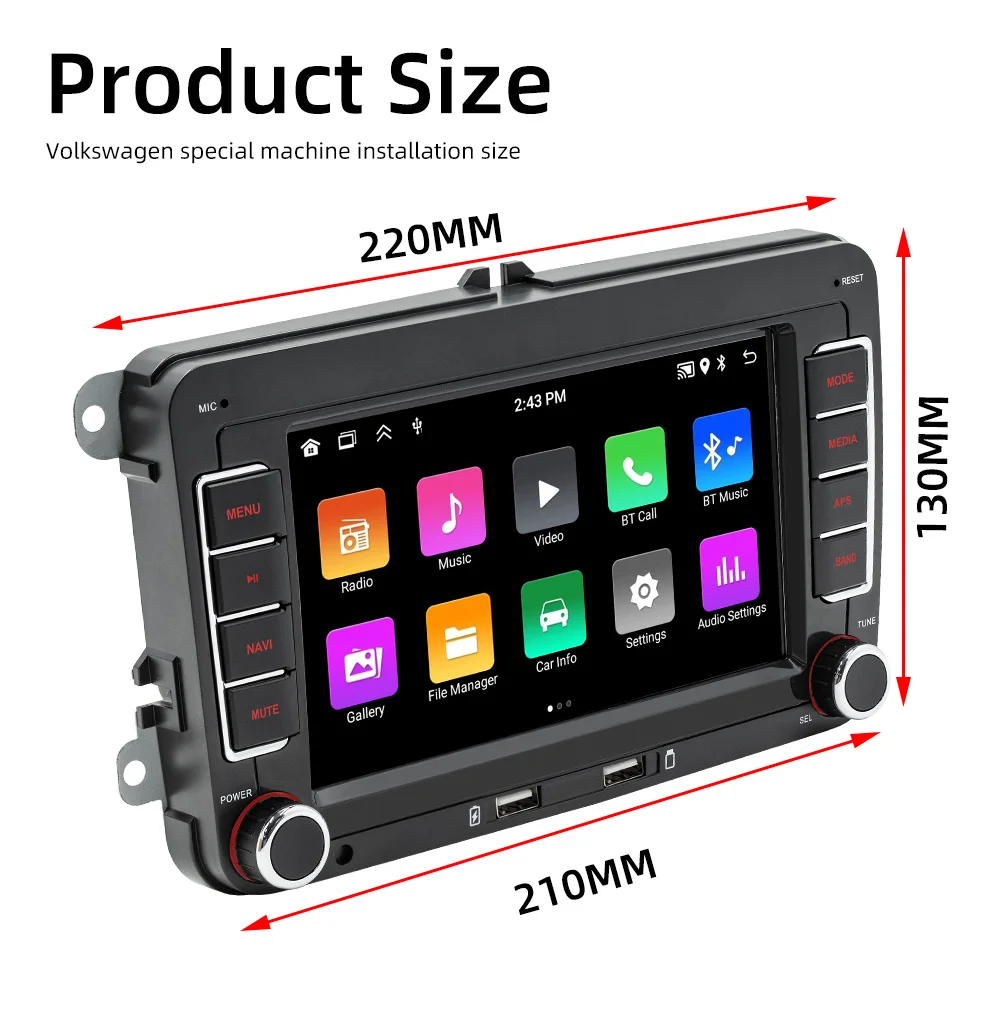

Installation size : 222x132MM (Volkswagen dedicated machine size)

Case size : 220x130MM

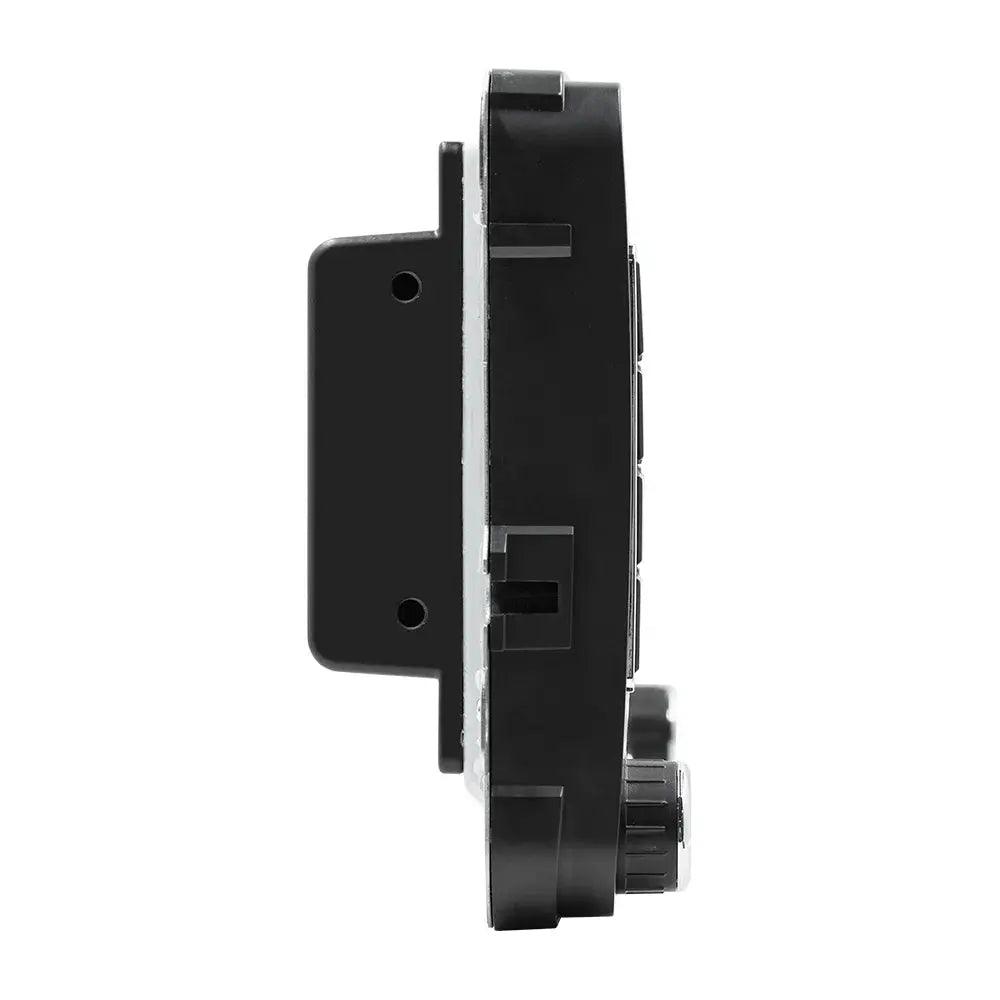

Host depth : 30MM

Color box size : 290x190x103MM (cowhide box)

Full box size : 592x382x355MM

Full box number : 12 units

Weight parameters

Single unit weight : 1.03KG

Full box net weight : 13.36KG

Full box gross weight : 14.20KG

Function parameters

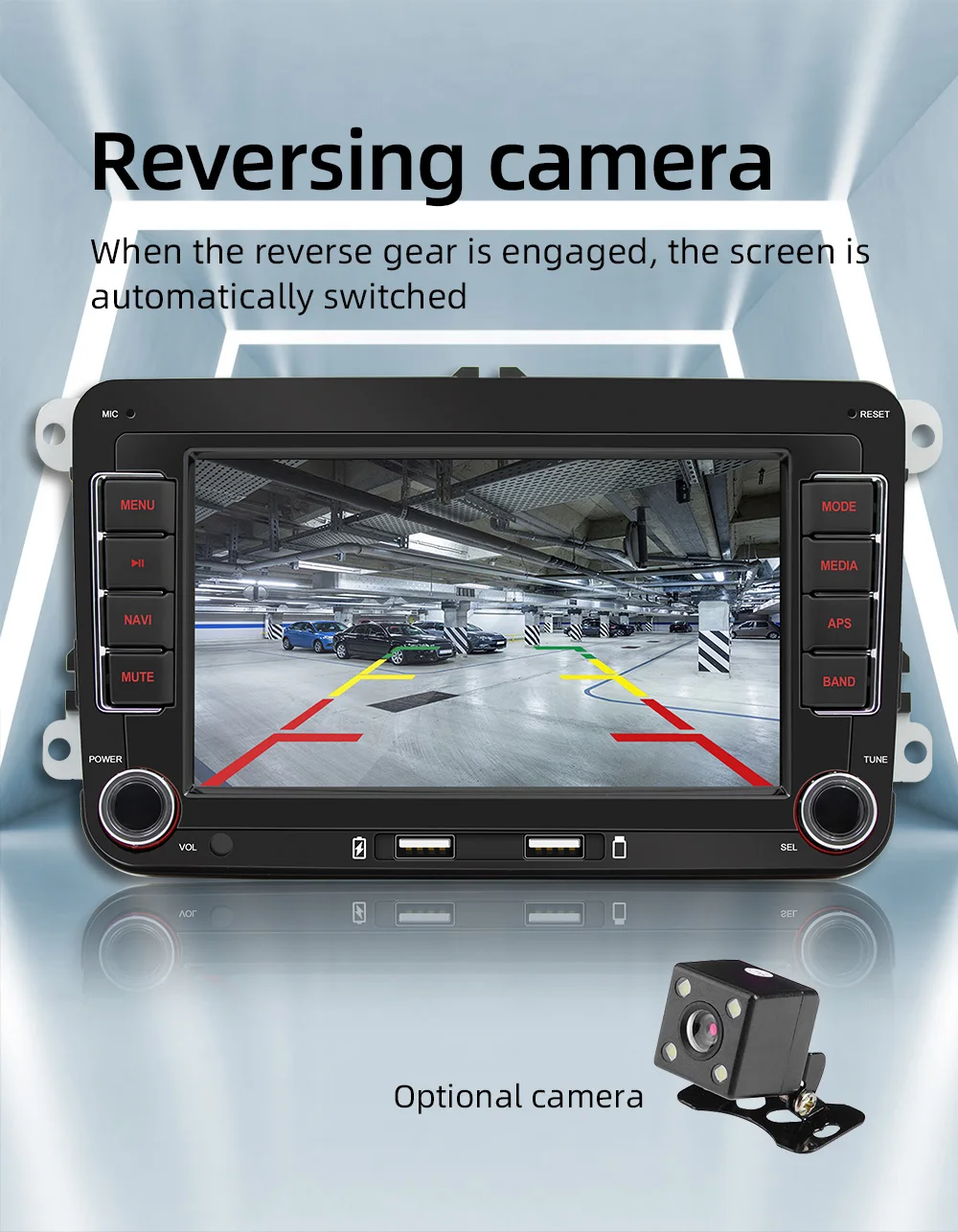

Reversing image : support (camera optional)

Play video warning : support

Steering wheel control support key learning

Video output : support

Offline map : support

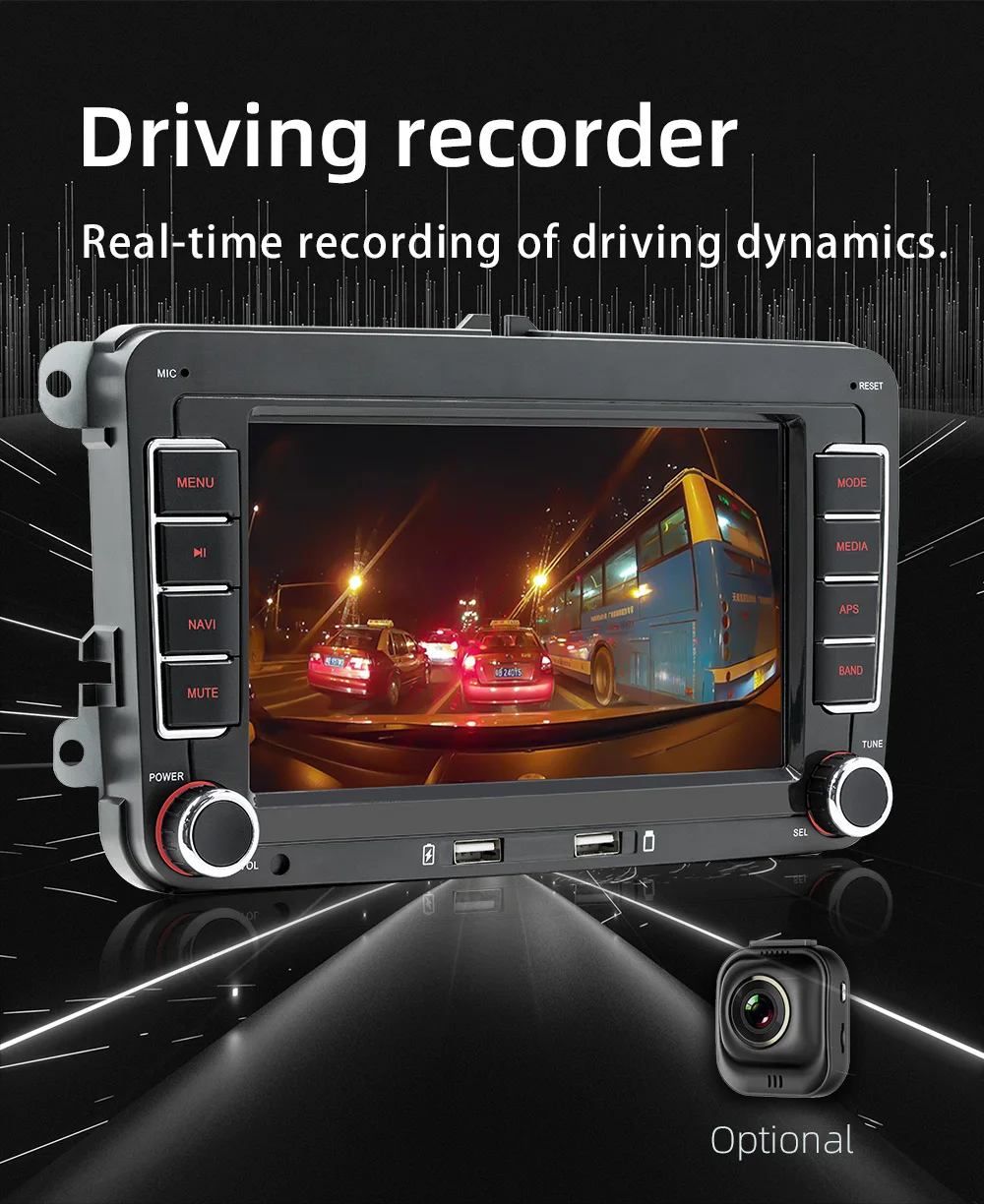

Driving recorder : support (USB signal input)

GPS navigation : support

USB connection :P rear USB2.0 reading + front USB2.0 + front USB charging

Reset button : support

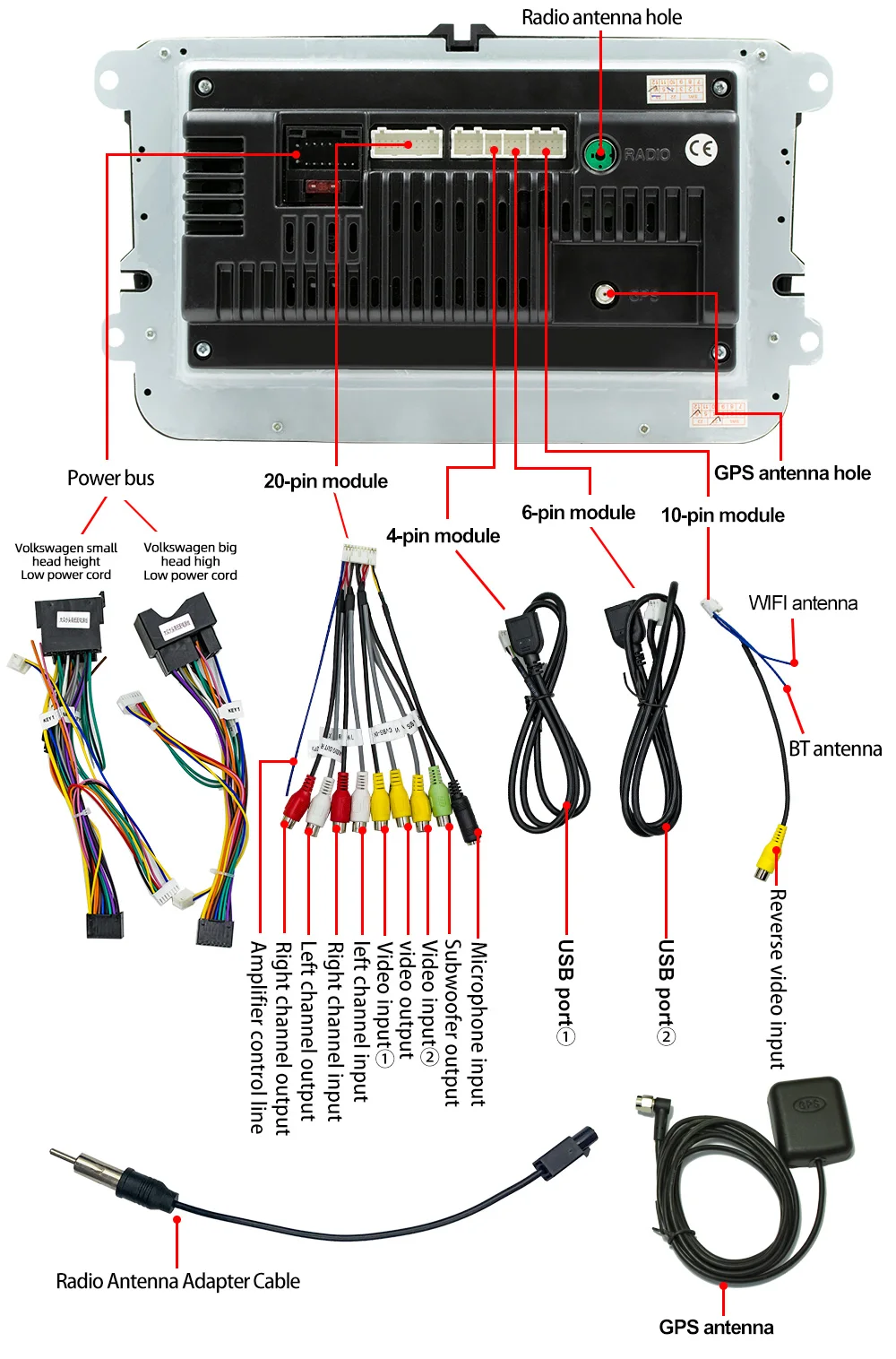

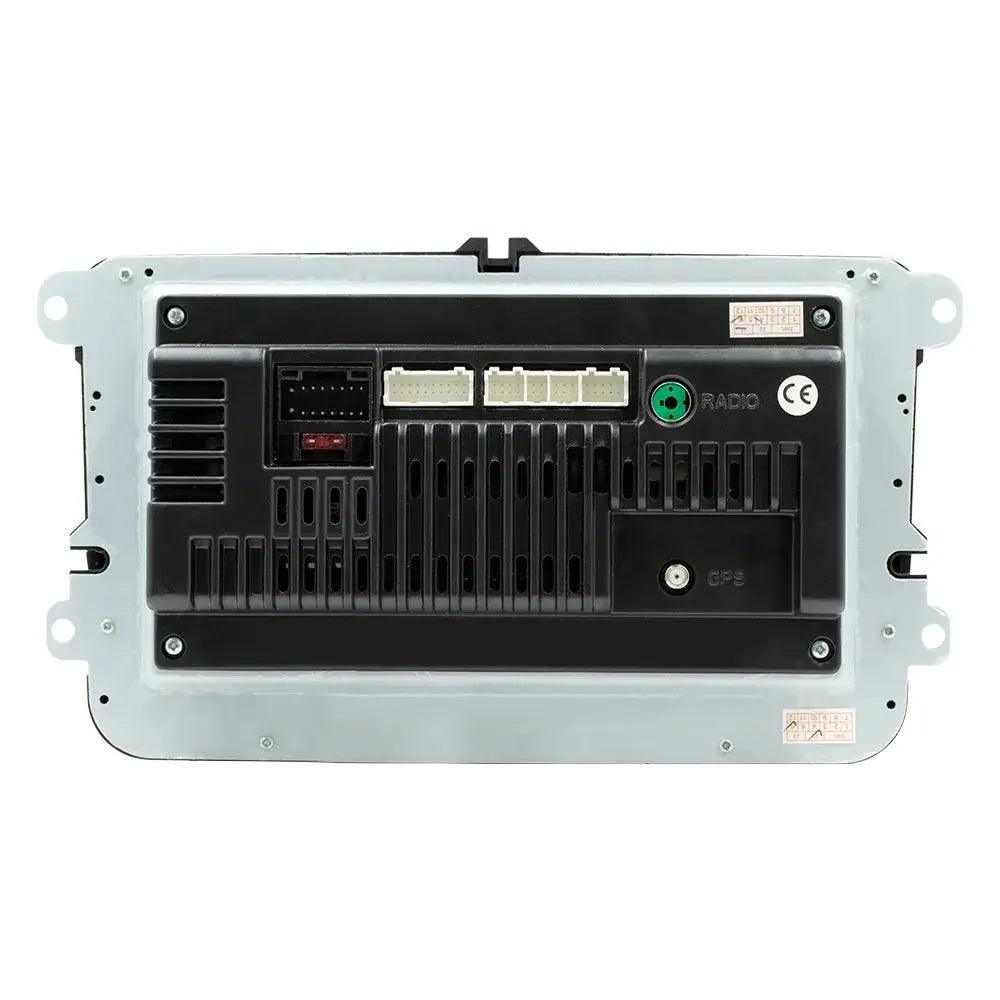

RCA port parameters

Audio output : 2 channels (left channel + right channel)

Video output : 1 channel

Audio input : 2 channels (left channel + right channel)

Video input : 2-way

Reversing video input : 1-way

Format parameters

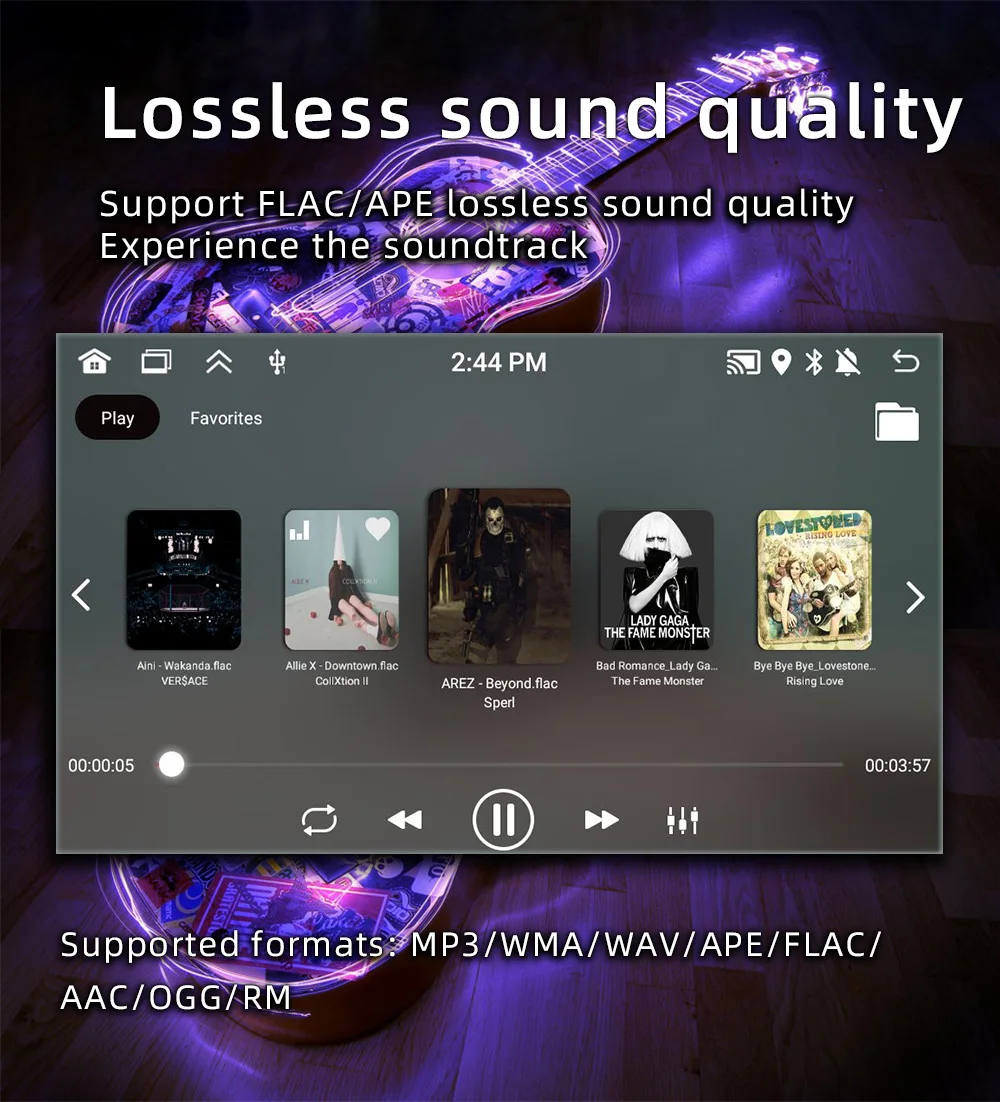

Audio format : MP3/WMA/WAV/APE/FLAC/AAC/OGG/RM

Video format : MPEG/AVI/RM/FLV/ASF/WMV/MP4/MKV/OGM/TS/DivX/RMVB/VOB

Image format : JPG/BMP/PNG/JPEG/GIF

Language parameters

Chinese/TraditionalChinese/English/Russian/Greek/Polish/Turkish/Arabic/Persian/Romanian/French/Hungarian/Italian/Thai/German/Ukrainian/Spanish/Portuguese/Czech/Vietnamese/Japanese/Malaysian/Dutch/Indonesian/Korean

Other parameters

Factory set password : 1234

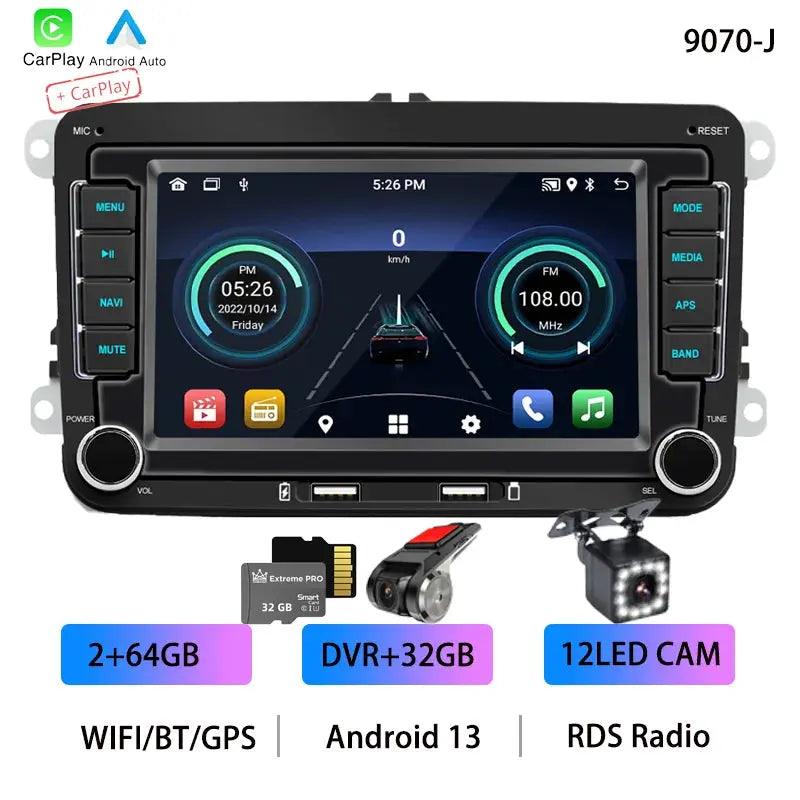

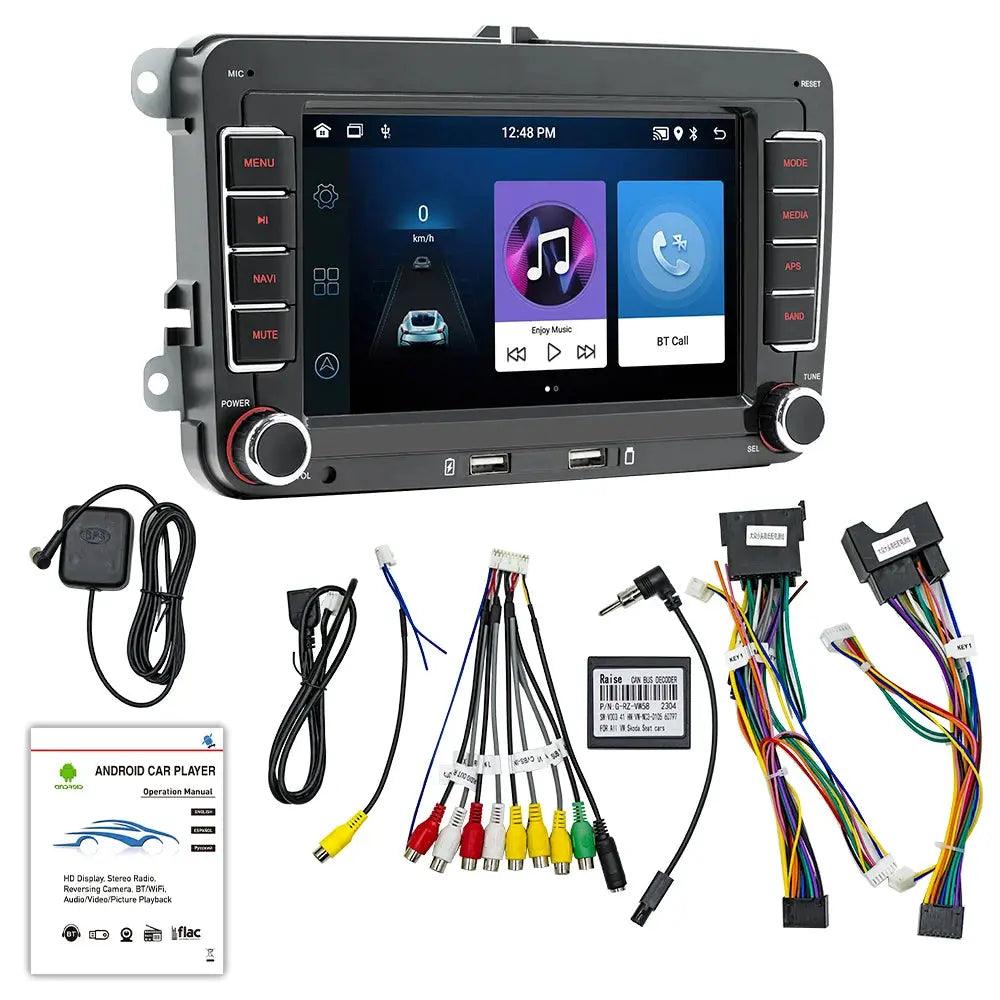

Accessories
1X1 Car radio
1X1 GPS antenna
1X1 High and low power cable
1X1 USB cable
1X1 Instruction manual

1x1 12LED camera(Optional)

1x1 Dirving recorder(Optional)

1x1 32GB memory card(Optional)

1x1 Reversing video cable

1x1 Radio antenna adapter cable

1x1 Protocol box

(accessories, instructions, and packaging will be updated from time to time, subject to the actual goods received)

FAQ:
Q1.Why the car radio can't turn on?
1>Please check the Voltage of the car radio: DC 12V
2>When you test this car radio, you can combine the red and yellow wires and connect them to the positive side of the power supply. The black line to the negative power supply.
3>Replace the same type of insurance to test the car radio.
Note: Please must use our power cables to connect our car radio, it is not possible to insert the original car plug directly into our machine.

Q2.Why the car radio will show time after we turn off this?
>That time clock is a function for the car radio, that can't be removed. In fact, a car radio had been turning off, saves time and is more convenient for people to see,
>If you didn't need this, you need to unplug the power positively and negatively

Q3.Why hasn't sound in the car radio when playing music?
>1. When you are not using our original audio cable, please check if your audio cable is suitable for our camera.
>2. Please check if there is any collision between the lines.
>If the line is connected, there will be no sound when the speaker cable touches the speaker cable. There is also no sound when the power cord touches the speaker cable.
>If the problem is still here, please use a single speaker to connect a group of audio cables to test the car radio. The four-speaker cables are connected separately to see if there is any sound.

Q4.Why can't search FM?
>1. No radio antenna was inserted.
>2. Please check if the radio antenna is plugged in. Please insert more antennas several times to make it well contacted.
>3. The signal of your location is not good. Please go to a better place to test again.
>4. The radio antenna on the car is broken/has no effect; please replace the radio antenna and test it again.

Q5.Why can't connect the Bluetooth to the car radio?
>1. Open the phone settings interface, open the Bluetooth in the Bluetooth function, search for Bluetooth devices, and find the player's Bluetooth model to be paired; if you need a pairing code, enter 0000; if not, try 1234 or 123456.
>2. Please try to use another mobile phone to test this function. All methods are correct and still cannot use Bluetooth, Please unplug the plug on the back of the player and plug it in after 3 minutes.

Q6. How to update GPS Map?
>1. First of all, you need to download the map update APK from our website or anywhere else or use a mobile phone to WIFI hotspot to download and install it directly. You can also use online navigation. Then you need to copy them to the GPS ROM and set the navigation path to the navigation program by setting.

Q7.Is it possible to listen to music or radio while using navigation ?!
>1. Yes, it is possible to listen to the radio or music while using the navigation system. Clayton devices are using a unique technology that makes listening to music happen when you are using the navigation system.

Q8.Do these units support steering wheel control ?!
>1.Yes of course. For each different car model, there is a different CAN-Bus ( Optional ) that comes with the unit to match the unit to the vehicle amplifier and steering wheel control.

Q9.Can we install the DVD Units ourselves?
>1. We will provide all the wires for the navigation, Power wire (Plug and play), RCA wires (with 7 ports), Reversing video input wire & wifi & Bluetooth antenna, GPS antenna, two USB wires
>2. It is preferred that the installation be done by a professional person. We are not responsible for the damages that might occur to the dashboard of the car while installing the device. So it is better that a professional person installs the unit on the cars.

Notes:
1. Due to the difference between different monitors, the pictures may not reflect the actual color of the item. Thank you!
2. Please leaving a message before you give the bad feedback, if the products have some problems.
3.Transition: 1cm=10mm=0.39inch
4.Please allow 1-3cm measuring deviation due to manual measurement.pls make sure you do not mind before you bid.
